Hawkvine Side Scan Sonar D150 D450 Broadband CHIRP technology for Hydrographic and Geophysical Surveys

Minimum Order Quantity : 1PCS Price : 20000-25000USD/SET
Packaging Details : Carton Packing Delivery Time : 30days
Payment Terms : L/C, T/T Supply Ability : 1000 Per month
Place of Origin: CHINA Brand Name: Hawkvine
Certification: ISO14001 Model Number: D150

Detail Information

Hawkvine No.: HV-D150 Frequency: 150kHz & 450kHz,450kHz & 900kHz
Range: 450m,150m,75m Consumption: 220/110VAC,40W

Product Description

Hawkvine Side Scan Sonar D150 D450 Broadband CHIRP technology for Hydrographic and Geophysical Surveys.

Hawkvine Side Scan Sonar D150 D450  Broadband CHIRP technology for Hydrographic and Geophysical Surveys 0

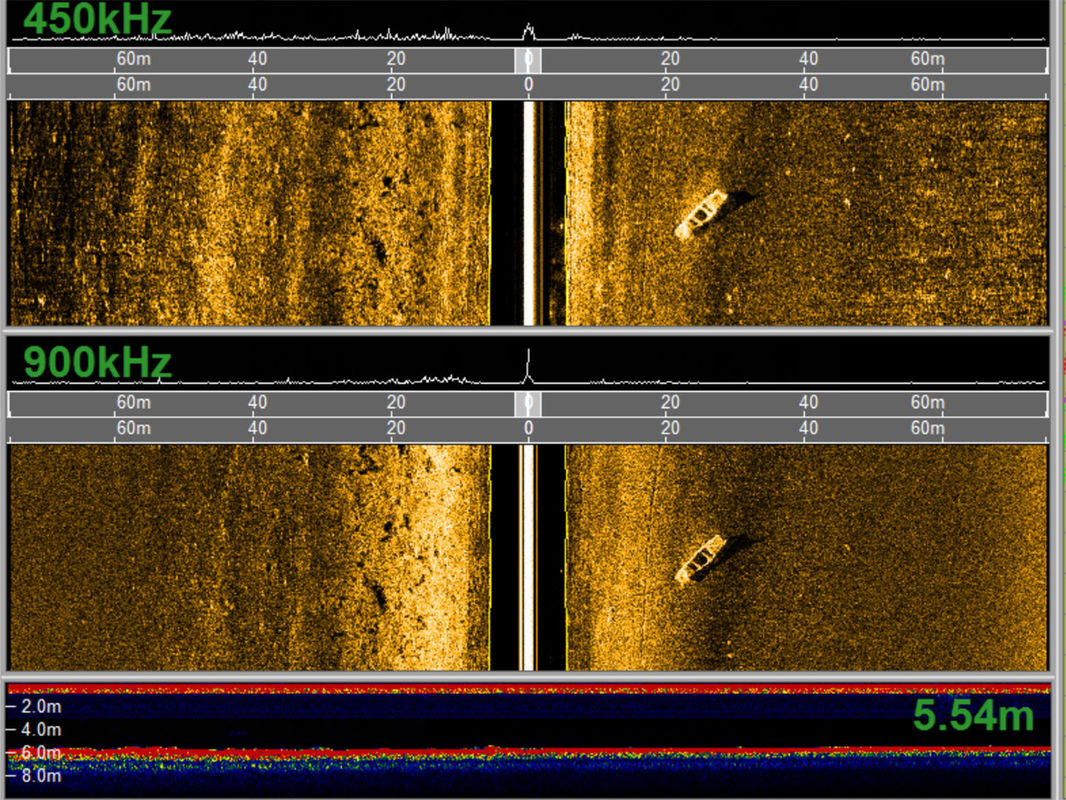

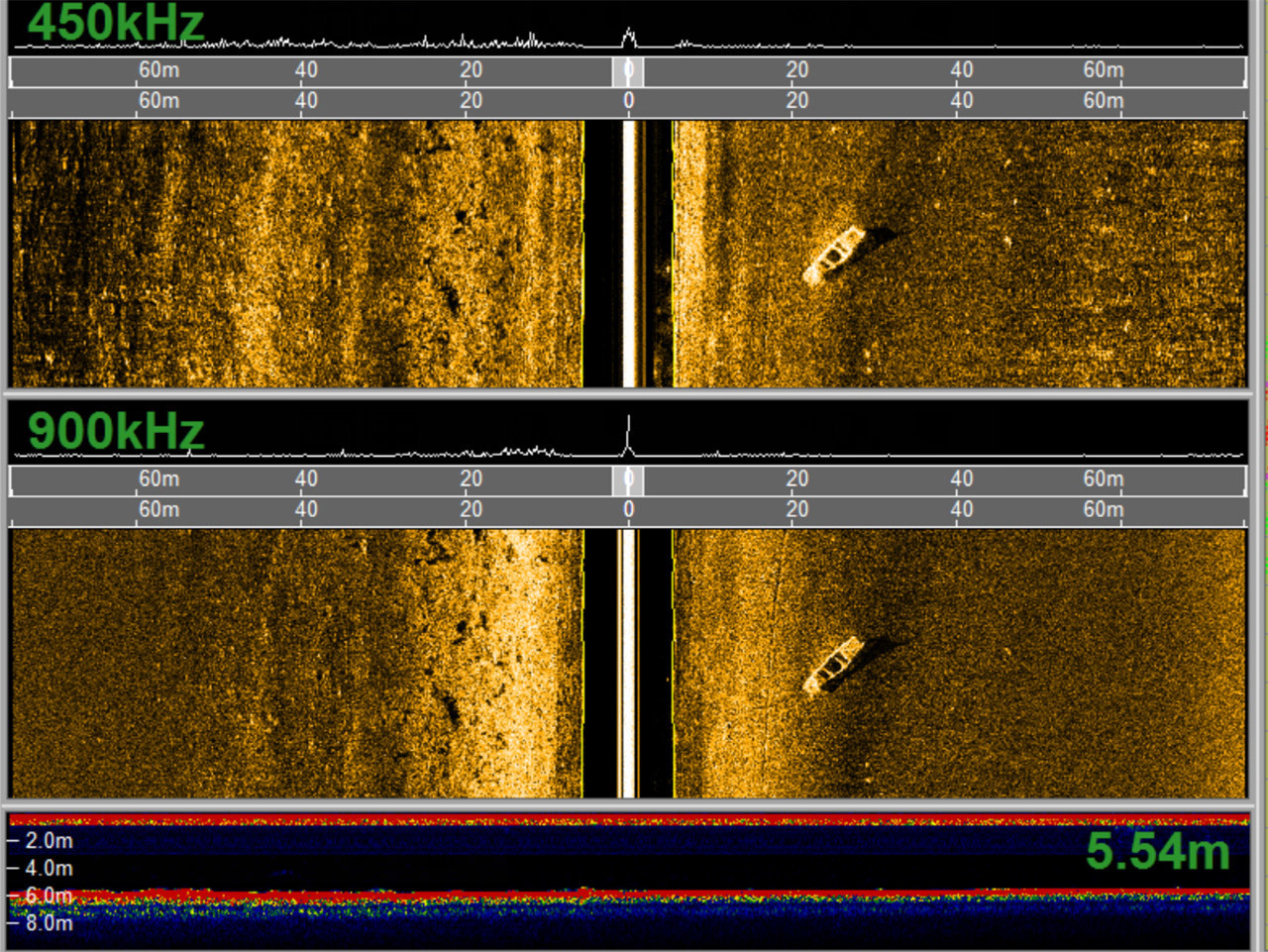

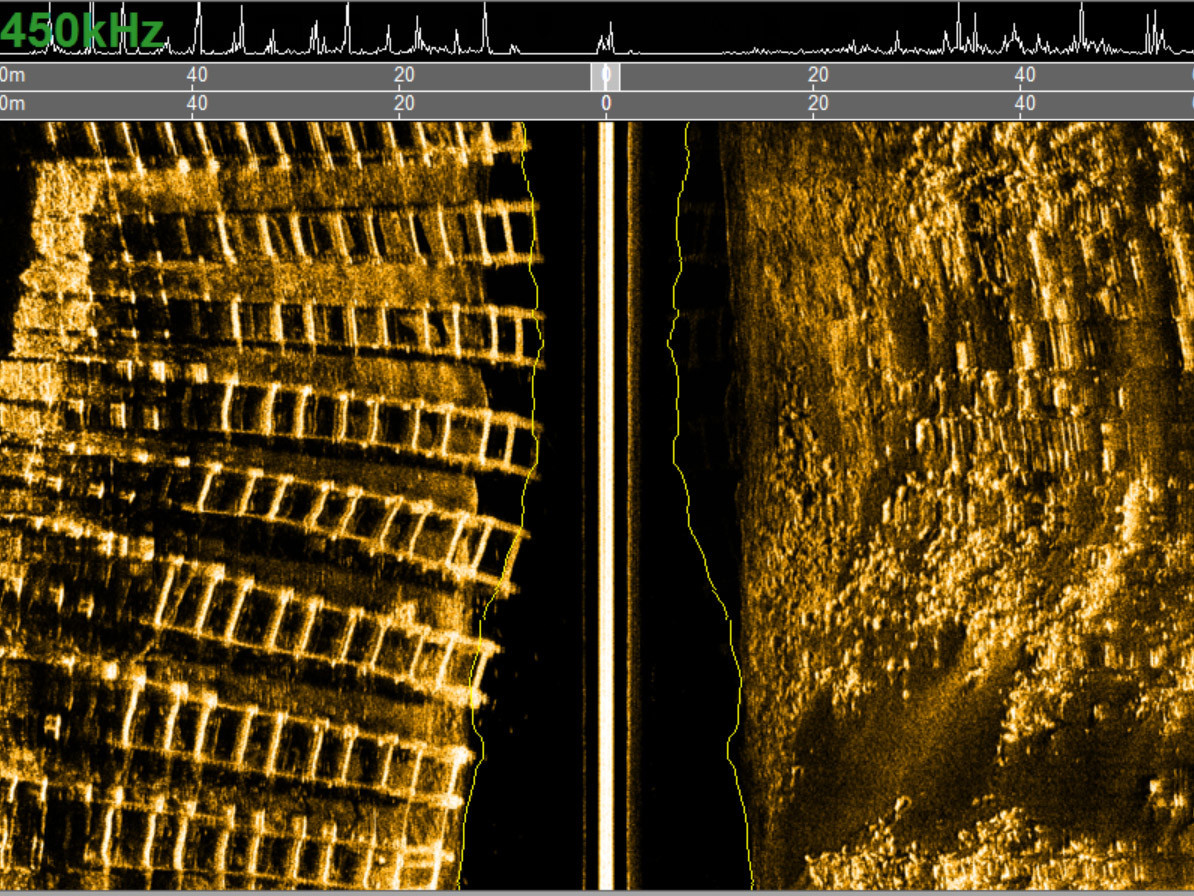

D Series side scan sonar can simultaneously transmit the CW or CHIRP signal. The echo signal was send to the deck unit by towfish through the underwater cable after receiving and processing, then processed by the sonar display-control software and generate the high resolution imaging data which can be saved to OTSS and XTF formats used to replay. Chirp technology can help enhancing the detection range of this system and achieving higher resolution data in bigger range.

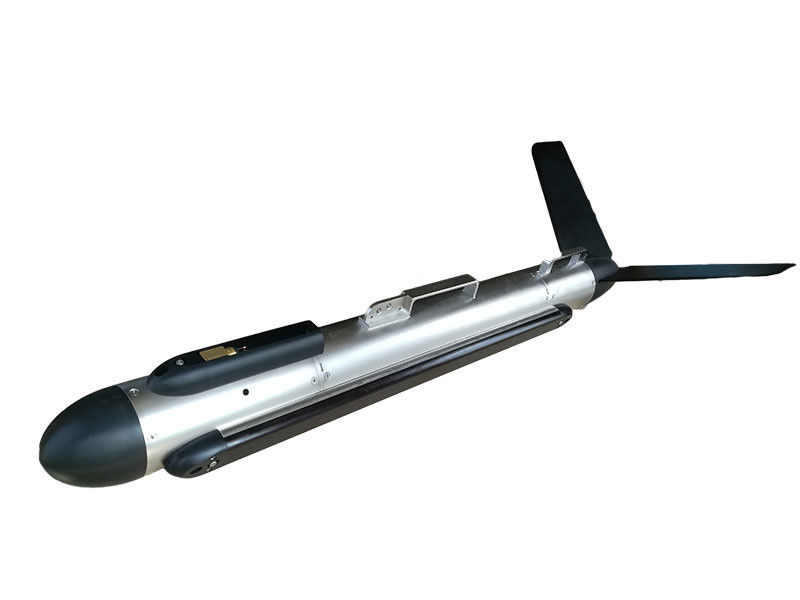

A strong stainless steel tow fish, a high strength Kevlar cable, a waterproof deck unit and the customized OTech® software are included in the sonar system which designed with ultra-low power consumption and can be powered with both AC and DC power.

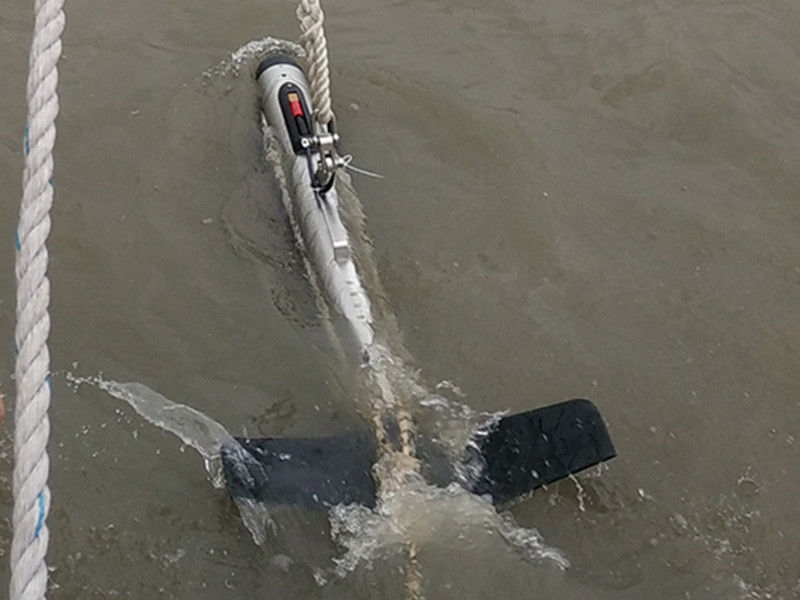

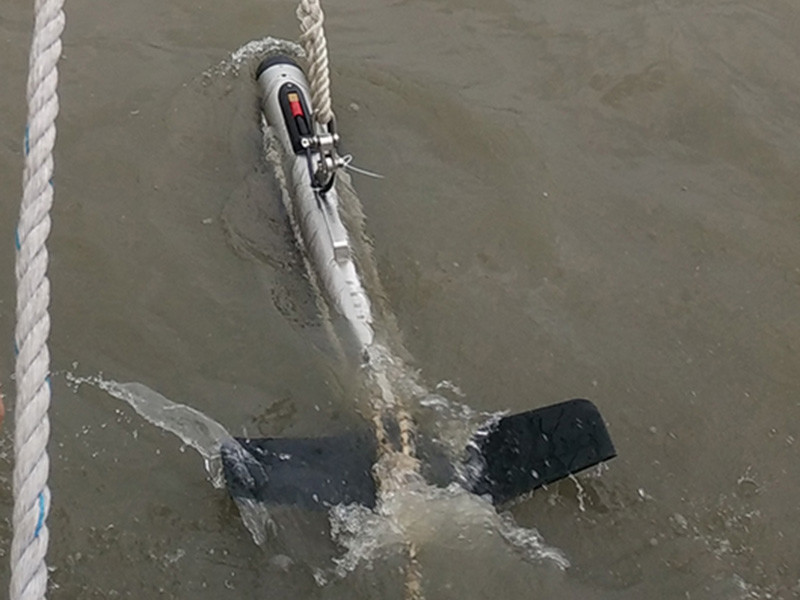

With compact and portable design, the sonar is reliable & durable, and can be easily operated by a single person. It can be fixed onto the bottom or side of the boat,and also can be dragged directly to work. The towfish is designed with collision protection which effectively assure the safety of the underwater working.

OTech® software is equipped with the function of sonar image display, navigation, data recording & replay, target management & output and sensor information multi-window display. It can output the data with standard formats which can be processed with the third party processing software, and also can be customized according to the requirements.



D150 features:

• Dual simultaneous frequency
• Enhanced resolution at long range
• Broadband CHIRP technology
• Build-in sounding module
• Towfish attitude real-time display
• Towfish impact protection
• OTech® acquisition software



D150 Application:

• Hydrographic Surveys
• Geophysical Surveys
• Cable and Pipeline Surveys
• Dredging Surveys
• Pier/Harbor Wall Inspections
• AUV/ROV Integration

Hawkvine No. HV-D150 HV-D450
Frequency 150kHz & 450kHz 450kHz & 900kHz
Pulse Type CW/LFM(CHIRP)
Maximum Range 450m @ 150kHz;150m @ 450kHz;75m @ 900kHz
Beam Width Horizontal:0.6°@ 150kHz;0.3° @ 450kHz;0.2° @ 900kHz Vertical:45°
Resolution(h-range) Along track:0.01h @150kHz;0.005h @450kHz;0.003h @900kHz
Across track:1.25cm
Depression Angle Tilted down 15°
Depth Rating 1000m(316 stainless Steel)
Standard Towfish Sensors roll,pitch,heading,depth,altitude
Towfish Size/Weight(air) 1300mm*105mm(length*D)/29kg 1170mm*105mm(length*D)/25kg
Deck Unit Size/Weight 170mm*120mm*70mm /0.8kg
Power Consumption 220/110VAC,40W 220/110VA,30W
Software OTech® Windows,NMEA 0183 Navigation Data Input,OTSS,XTF Output Data Format
Tow Cable Kevlar,standard length: 50m(option);winches available
