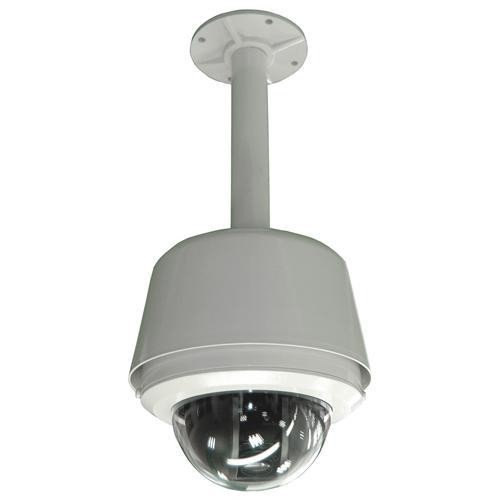

23X Pendant PTZ High Speed Dome Camera

Name: 23X Pendant PTZ High Speed Dome Camera
Brand: 23X Pendant PTZ High Speed Dome Camera
SKU: WS-23W
Rating: 4.5 (146 reviews)

Delivery Time :	within 6 working days(depends on your quantity)

Place of Origin:	china	Model Number:	WS-23W

Detail Information
Category:	CCTV Camera	Sample Price:	Depending On Exchange Rate Fluctuations

Product Description

Features		ã€€	ã€€	ã€€
â—†Built-in English OSD Menu with password protection â—†Activities(scan,preset,pattern etc.) can be schedeled when the PTZ camera parks or powers up â—†Alarm input,alarm output,alarm action â—†Proportional pan automatically reduces or increases the pan/tilt speed as per zoom times â—†Windows blanking:8 areas â—†The heater startup mode is programmable â—†Manual-controlled scan area adjustable â—†New and easy installation design with EasyClip
Specification		ã€€	ã€€	ã€€
Model	WS-HS23P
Signal Format	PAL/NTSC
Image Sensor	1/4-type Exview HAD CCD			ã€€
Resolution	540TVL
S/N Ratio	Not less than 50DB
Illumination	0.01Lux
Day/Night	Yes
Optical Zoom	23X
Digital Zoom	12X
Lens	F1.6-F3.7 f=3.6-82.8mm
AGC	Auto/Manual
BLC	Auto/Manual
Pan/Tilt Speed	Pan:0.05ï½ž400°/sec,Tilt:0.03ï½ž240°/sec
Pan/Tilt Range	Pan:0ï½ž360° continuous; Tilt:0ï½ž92°,auto filp
Auto Accuracy	Auto switch from 0 to 54 preset positions sequentially
Pattern Scan	4 routines of pattern scan
Track Accuacy	0.05 Degree
Presets	256
Comm.Port	RS485
Band Rate	1200bps, 2400bps, 4800bps, 9600bps, 19200bps
Zones	8
Alarms	4 Inputs / 2 Outputs
Operating Temp	â€“25°C ~ +70°C (w/o heater) / -50°C ~ +70°C (with heater)
Power	DC12V / AC24V, 20W (with no heater) or 50W (with heater)
