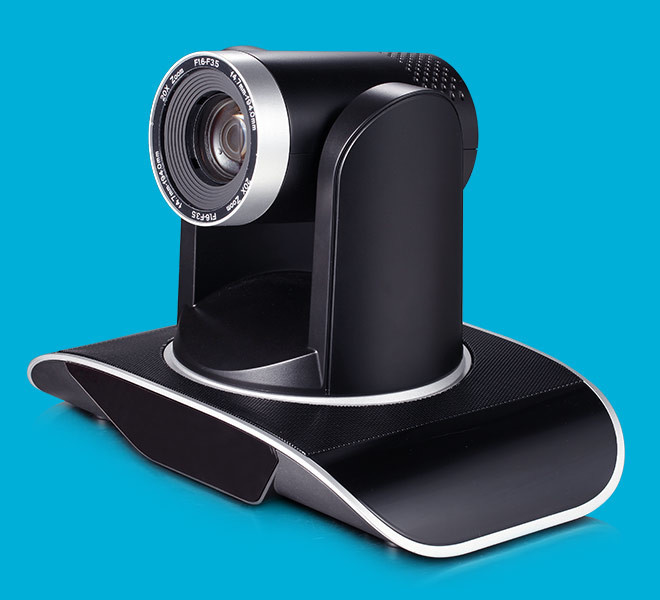

Hawkvine VC027 USB 3.0 HD PTZ Camera Define Omnidirectional 12X 20X 30X Digital Zoom

Minimum Order Quantity : 1PCS Price : 100-10000
Packaging Details : Carton Packing Delivery Time : 15days
Payment Terms : L/C, T/T Supply Ability : 1000 Per month
Place of Origin: CHINA Brand Name: Hawkvine
Certification: TS16949 Model Number: VC027

Detail Information

Hawkvine No.: HV-VC027 Image Sensor: 1/2.8 Inch High Quality HD CMOS Sensor
Digital Zoom: 12X,20X,30X Video Output: USB3.0,USB2.0, HDMI, LAN, RS232(IN), A-IN

Product Description

Hawkvine VC027 USB 3.0 HD PTZ Camera Define Omnidirectional 12X 20X 30X Digital Zoom .

Hawkvine VC027 USB 3.0 HD PTZ Camera Define Omnidirectional 12X 20X 30X Digital Zoom 0

Hawkvine VC027 USB 3.0 HD PTZ Camera Define Omnidirectional 12X 20X 30X Digital Zoom 1



VC027 KEY FEATURES:


1.Superb High-definition Image
VC027 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.


2.Various Optical Zoom Lens
VC027 has 12X/20X/30X optical zoom lens for options. 12x zoom lens is with 72.5 ° wide view angle without distortion.


3.Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.


4.Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.


5.Audio Input Interface (for future development)
Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.


6.Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism,VC027 camera works extremely quiet and moves smoothly.


7.Multiple Audio/Video compression
Support H.264/H.265 video compression;AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.


8.Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)


9.Wide Application
Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine, Interrogation and Emergency command systems.


10.Low-power sleep function
Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.



Model VC027-12X VC027-20X VC027-30X
Camera Parameter
Optical Zoom f=3.9~46.1mm f=55.7~110mm f=4.3~129mm
Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 16: 9 2.07 megapixel
Video Format ST video format

1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97

U3.0 interface video format

1)USB3.0: 1920X1080P60/50/30/25;1280X720P60/50/30/25;960X540P30;640X360P30;640X480P30;352X288P30;960X540P30

2) USB3.0 compatible with USB2.0 :960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30.

View Angle 6.3°(tele)–72.5°(wide) 3.3°(tele)–54.7°(wide) 4.3°(tele)–54.7°(wide)
AV F1.8 ~ F2.4
Digital Zoom 10X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video Adjustment Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve
SNR >55dB
Input/Output Interface
Video Interfaces VC027-12/20/30-ST Model:3G-SDI,DVI(HDMI),LAN,RS232(IN/OUT),RS485,A-IN

VC027-12/20/30-U3 Model:USB3.0,DVI(HDMI),LAN,RS232(IN)

VC027-12/20/30-U2U3 Model: USB3.0,USB2.0, HDMI, LAN, RS232(IN), A-IN

Image Code Stream Dual stream output
Video Compression Format H.264, H.265
Control Signal Interface RS-232 Ring through RS232 output
Control Protocol VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio Input Interface Double track 3.5mm linear input;
Audio Compression Format AAC/MP3/PCM Audio compression
HD IP Interface Support Visca protocol control through IP port.
Network Protocol RTSP/RTMP,ONVIF,GB/T28181
Power Interface HEC3800 outlet (DC12V)
PTZ Parameter
Pan Rotation ±170°
Tilt Rotation -30°~+90°
Pan Control Speed 0.1 -100°/sec
Tilt Control Speed 0.1-45°/sec
Preset Speed Pan: 100°/sec,Tilt: 45°/sec
Preset Number 255 presets (10 presets by remote controller)
Other Parameter
Supply Adapter AC110V-AC220V to DC12V/1.5A
Input Voltage DC12V±10%
Input Current 1A(Max)
Consumption 12W (Max)
Store Temperature -10℃~+50℃
Store Humidity 20% – 95%
Working Temperature -10℃~+50℃
Working Humidity 20%–80%
Dimension 258mmX172mmX168mm
Weight 1.54KG
Remote Operation (IP) Remote Upgrade,Reboot and Reset
Accessory power supply,RS232 control cable,remoter,manual,warranty card,bracket(optional)



Hawkvine VC027 USB 3.0 HD PTZ Camera Define Omnidirectional 12X 20X 30X Digital Zoom 2
