H88-U30 Series Premium Video PTZ Cameras Specification Sheet

Name: H88-U30 Series Premium Video PTZ Cameras Specification Sheet
Brand: H88-U30 Series Premium Video PTZ Cameras Specification Sheet
SKU: 7-5
Price: 355.00 USD
Availability: InStock
Rating: 5 (185 reviews)

Price :	$355.00/Pieces >=1 Pieces

Place of Origin:	China	Model Number:	7-5

Detail Information
Model:	H88-U30 Series Premium Video PTZ Cameras Specification Sheet	Port:	Tianjin

Product Description

USB3.0 Cable connect to PC

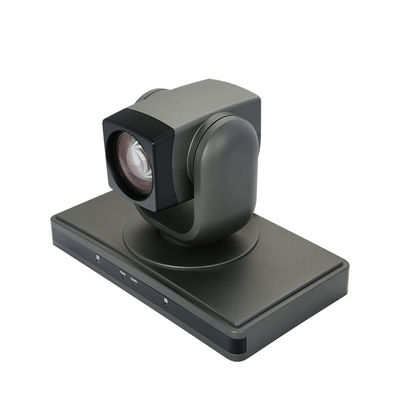

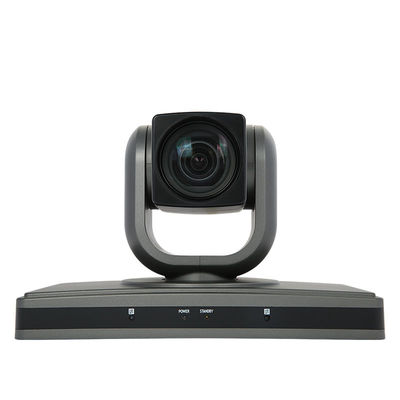

USB 3.0 PTZ Camera equipped with 10x, 12x, 20x, 30x Optical zoom block optional, 12V 2A Power supply, HD Video and PTZ movement Control transmission. 2.1 Megapixel Effective CMOS Sensor achieved 1080p@30 high quality images. USB 3.0 ideally suits Medium size conference rooms, it can be connected with any Web Conferencing system in Windows and MAC OS. It delivers instant real time, face-to-face experience through its powerful design that enhances your collaboration experience. It adopts high precision motor and driver to ensure stable and quiet of camera PTZ movement. It can be easily purchased, installed and used. Features:  PRO PTZ Camera design  OSD Menu/Lens Menu  Speed Match  UVC Protocol 1.5  IR remote controller unit  USB 3.0 Connection

Performance:  1920x1080pixels progressive @30fps  10x,12x, 20x, 30x optical zoom lens  HOV 60.9/72.1/58.7/63.5 degree  1/2.8”Progressive/Type Exmor CMOS Sensor  Pan 355 degree Pan movement  Tilt +90 degree, - 45 degree  64 preset positions  4 cruise lines  No need Power adaptor

Dimension: L 145 mm x W 148 mm x H 161 mm Installation:  Desktop  Standard Tripod  Wall mount  Ceiling mount Remote control unit

1)Reset 2)Power ON/OFF 3)IR Select 4)PAN, TILT, Home position 5)AUTO, MANUAL, FAR, NEAR 6)Zoom in/out 7)DOME OSD, LENS OSD 8)REV 9)SET/CLEAR/CALL Presets 10)1-9 Presets

Accessories List: 1)HD PTZ Camera 2)3 meters USB 3.0 Cable 3)Ceiling mount bracket 4)Installation kits package 5)Power supply 6)User’s manual book 7)IR remote control

Specification Sheet

Model number:			HD8810-U30-K7	HD8812-U30-K8	HD8820-U30-K5	HD8830-U30-SN7500
			10 x	12 x	20 x	30 x
Image SenSor	Sensor	1/2.8'' Progressive CMOS					1/2.8'' Type Exmor CMOS
	Effective pixel	2.1 Megapixel					2.38 Megapixel
	Minimum Scene illumination	0.5Lux at F1.6					0.05Lux at F1.6
	White balance	MANUAL/AUTO/ATW/INDOOR/OUTDOOR					MANUAL/AUTO/INDOOR/OUTDOOR
	Gain Control	AUTO					AUTO
	Back-light compensation	On/Off					On/Off
	S/N Ratio	>50db					>50db
	IRIS	F1.6-F3.0	F1.6-F2.8	F1.6—F3.5	F1.6-F4.7
Lens	Focus	f=4.7-47 mm	f=3.96-46.8 mm	f=4.7-94 mm	f=4.6 mm-138 mm
	Zoom	10x Optical Zoom	12x Optical Zoom	20x Optical Zoom	30x Optical Zoom
	Hov	60.9 degree	72.1 degree	58.7 degree	63.5 degree
Video Output			USB 3.0 Type B					USB 3.0 Type B
Video format			USB3.0:1080P30/25(YUY2)、720P30/25(YUY2)、800×600、640×480					1080P30/25,720P30/25、800×600、640×480
Control Interface			USB					USB
PTZ Control Protocol			VISCA, PELCO-D, UVC					VISCA, PELCO-D, UVC
Baud Rate			9600/38400bps					9600/38400bps
Patrol tours			4					4
Preset			64					64
OSD Menu			Support					Support
Speed Matching Function			Support					Support
Image Auto Flip			Support					Support
Pan Speed			0-100 degrees/s					0-100 degrees/s
Tilt Speed			0-100 degrees/s					0-100 degrees/s
Pan Rotation Angle			0-355 degree					0-355 degree
Tilt Rotation Angle			+ 90, - 45 degree					+ 90, - 45 degree
Auto Pan Scan			Support					Support
Remoter Control			IR Wireless remote control P/T/Z					IR Wireless remote control P/T/Z
Power			DC12V±10%，2A					DC12V±10%，2A
Operation Temperature			0℃～50℃					0℃～50℃
Environmental humidity			0-95%RH(non-condensaion)					0-95%RH(non-condensaion)
Length X width X high			L 145 mm x W 148 mm x H 160 mm					L 145 mm x W 148 mm x H 160 mm
Weight			1215 g	1700 g	1450 g	1600 g
