H3 Series Premium Video PTZ Cameras Specification Sheet

Name: H3 Series Premium Video PTZ Cameras Specification Sheet
Brand: H3 Series Premium Video PTZ Cameras Specification Sheet
SKU: 7-2
Price: 155.00 USD
Availability: InStock
Rating: 4.9 (141 reviews)

Price :	$155.00/Pieces >=1 Pieces

Place of Origin:	China	Model Number:	7-2

Detail Information
Type:	Audio Conference System, Network Conference System, Video Conference System	Function:	PTZ Cameras
Model:	H3 Series Premium Video PTZ Cameras Specification Sheet	Port:	Tianjin

Product Description

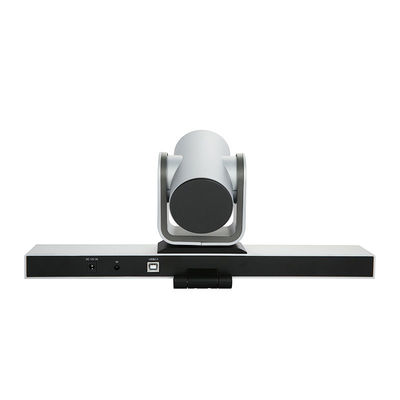

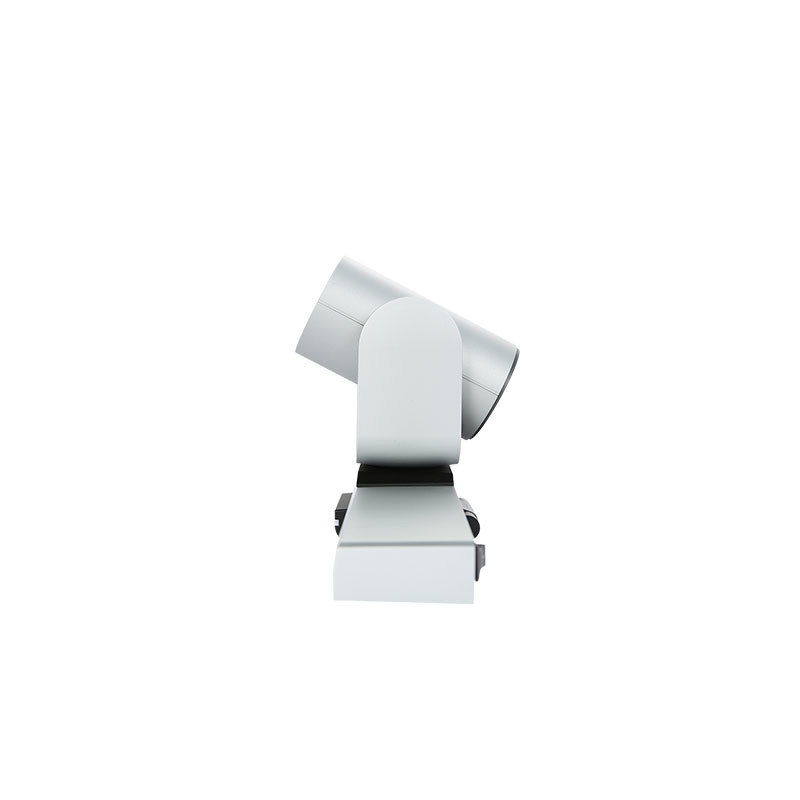

H3 is an innovative video conference camera for smart screen, with brand new appearance design. It is recommended for small to medium sized businesses who seek an easy-to-use but potent video conferencing solution. By supporting Full HD video resolutions and with 3x/10x optical zoom lens, H3 turns any video conference into a powerful clear enhancing experience.

Features:  PRO PTZ Camera design  OSD Menu/Lens Menu  Speed Match  UVC Protocol 1.5  IR remote controller unit  USB 2.0 Connection Performance:  1920x1080pixels progressive @30fps 3x or 10x optical zoom lens  HOV84/54 degree  1/2.9”HD color CMOS Sensor  Pan ± 75 degree Pan movement  Tilt +30 degree, - 30 degree  64 preset positions  4 cruise lines  No need Power adaptor Dimension:  L 350mm x W 112mm x H139mm Installation:  Desktop  Standard Tripod  5 meters USB Cable

Single USB Cable connect to PC USB 2.0 Power supply via USB cable, auxiliary power cable (5 Meters cable)

Accessories List: 1)5 meters USB 2.0 Cable 2)L- Type bracket 3)HD PTZ Camera 4)Installation kits package 5)User’s manual book 6)IR remote control

Specification Sheet

Model number:			H3-H3M	H3-HAM
				3X	10X
Image SenSor	Sensor	1/2.9" SONY CMOS
		Effective pixel	2.1 Megapixel
		Minimum Scene illumination	0.1Lux at F1.6
		White Balance	MANUAL/AUTO/ATW/INDOOR/OUTDOOR
		Gain Control	AUTO
		Back-light compensation	Supported
	S/N Ratio	>50db
		IRIS	F1.7-F3.0	F1.6-F2.5
Lens	Focus	f=3.3mm-10mm	f=4.7-47mm
		Zoom	3x Optical Zoom	10x Optical Zoom
		Hov	84 degree	54 degree
Video Output			USB 2.0 Type B
Video format			MJPEG: 1080P30/25,720P30/25, 640x480, 640x360
Control Interface			USB
PTZ Control Protocol			VISCA,PELCO-D,UVC
Baud Rate			9600/38400bps
Patrol tours			4
Preset			64
OSD Menu			LENS OSD/DOME OSD
Speed Matching Function			Support
Image Auto Flip			Support flip/mirror
Pan Speed			0-40 degrees/s
Tilt Speed			0-40 degrees/s
Pan Rotation Angle			0-150 degree
Tilt Rotation Angle			+ 30, - 30 degree
Auto Pan Scan			Support
Remoter Control			IR Wireless remote control P/T/Z
Power			USB 2.0 Power supply
Operation Temperature			0℃～50℃
Environmental humidity			0-95%RH(non-condensation)
Length X width X high			L 350mm x W 112mm x H139mm
Weight			785g
