Ultimate Guide to Video Conferencing Equipment and Setup
Contact Person : Echo Yang
Minimum Order Quantity : | 1PCS | Price : | 100-10000 |
---|---|---|---|
Packaging Details : | Carton Packing | Delivery Time : | 15days |
Payment Terms : | L/C, T/T | Supply Ability : | 1000 Per month |
Place of Origin: | CHINA | Brand Name: | Hawkvine |
---|---|---|---|
Certification: | TS16949 | Model Number: | VC032 |
Detail Information |
|||
Hawkvine No.: | HV-VC032 | Image Sensor: | 1/2.8 Inch High Quality HD CMOS Sensor |
---|---|---|---|
Digital Zoom: | 10X | DNR: | 2D﹠3D DNR |
Product Description

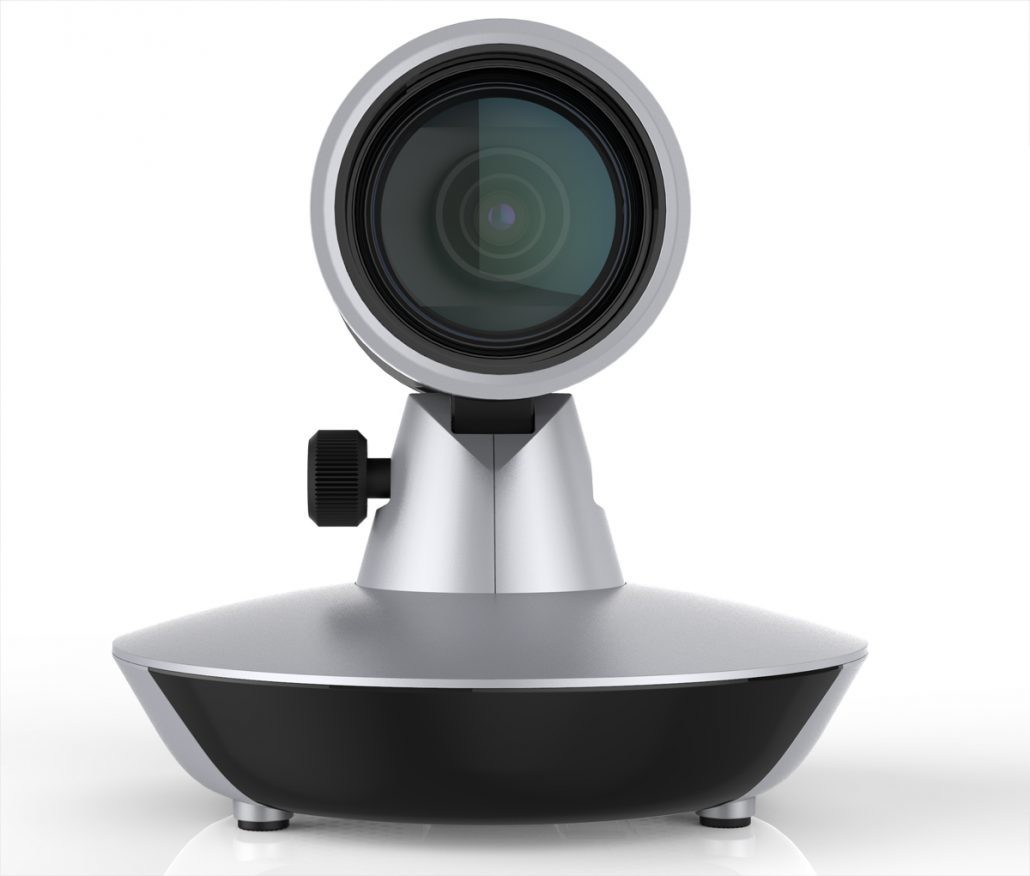

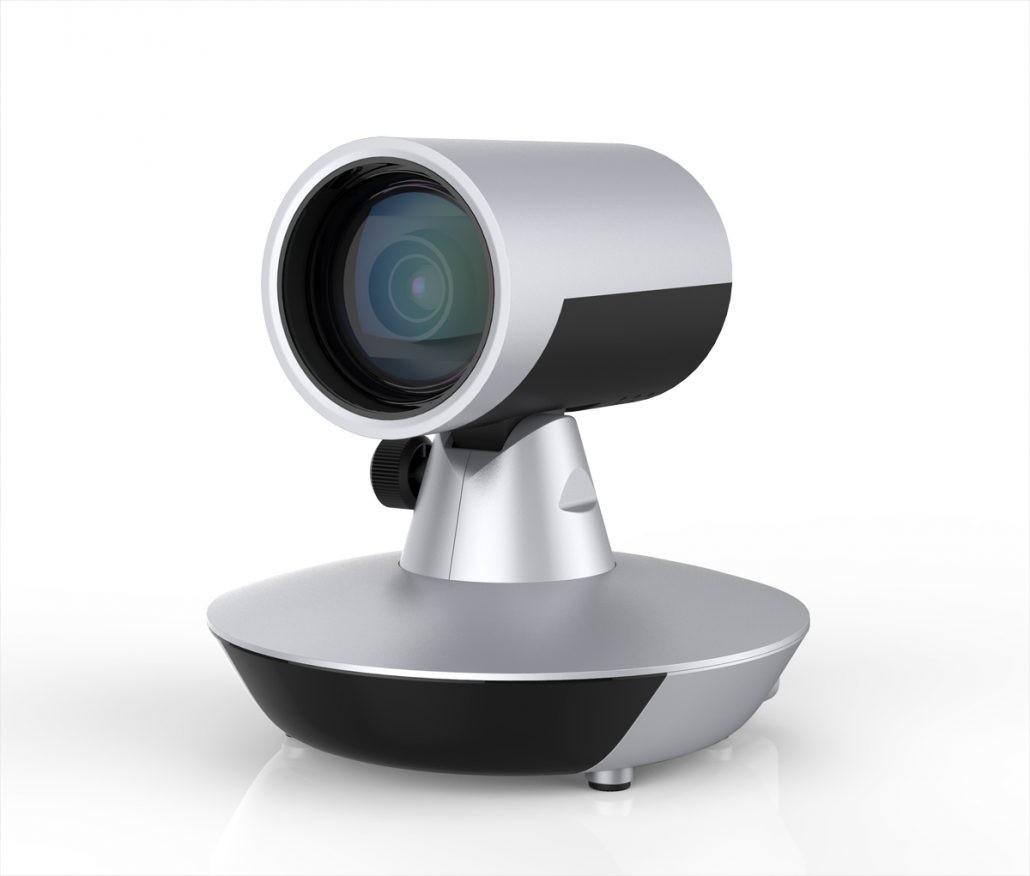

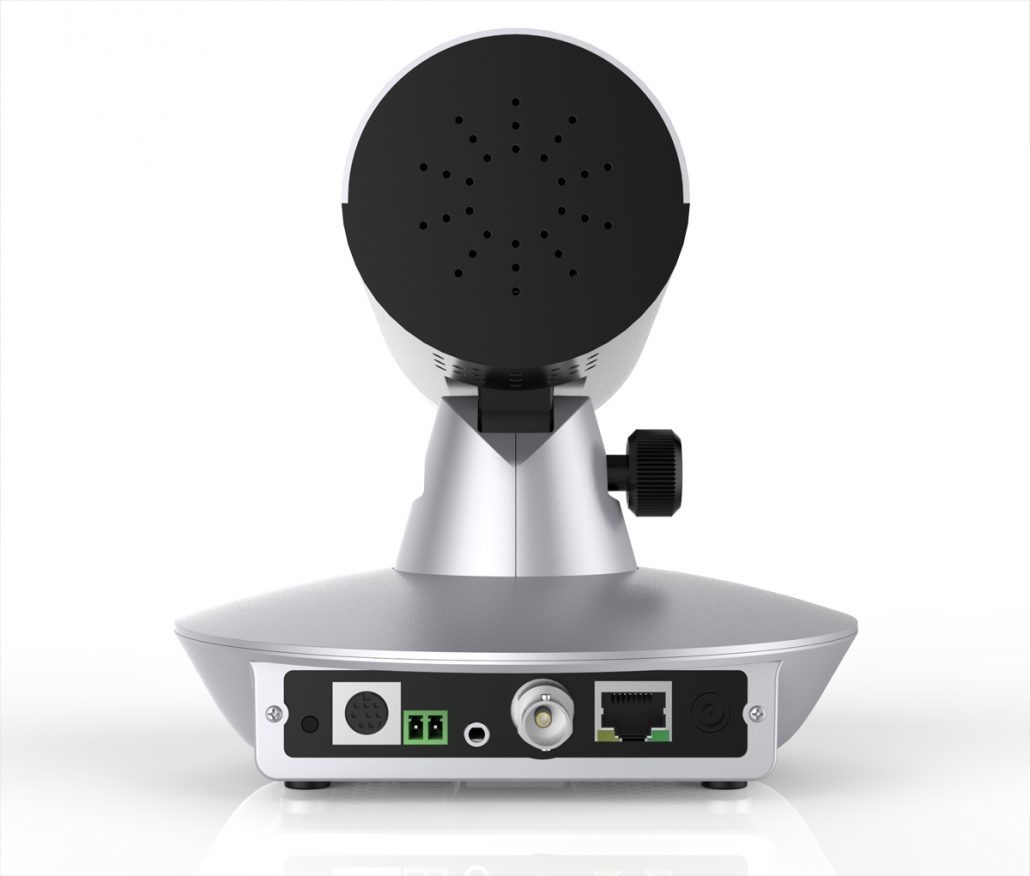

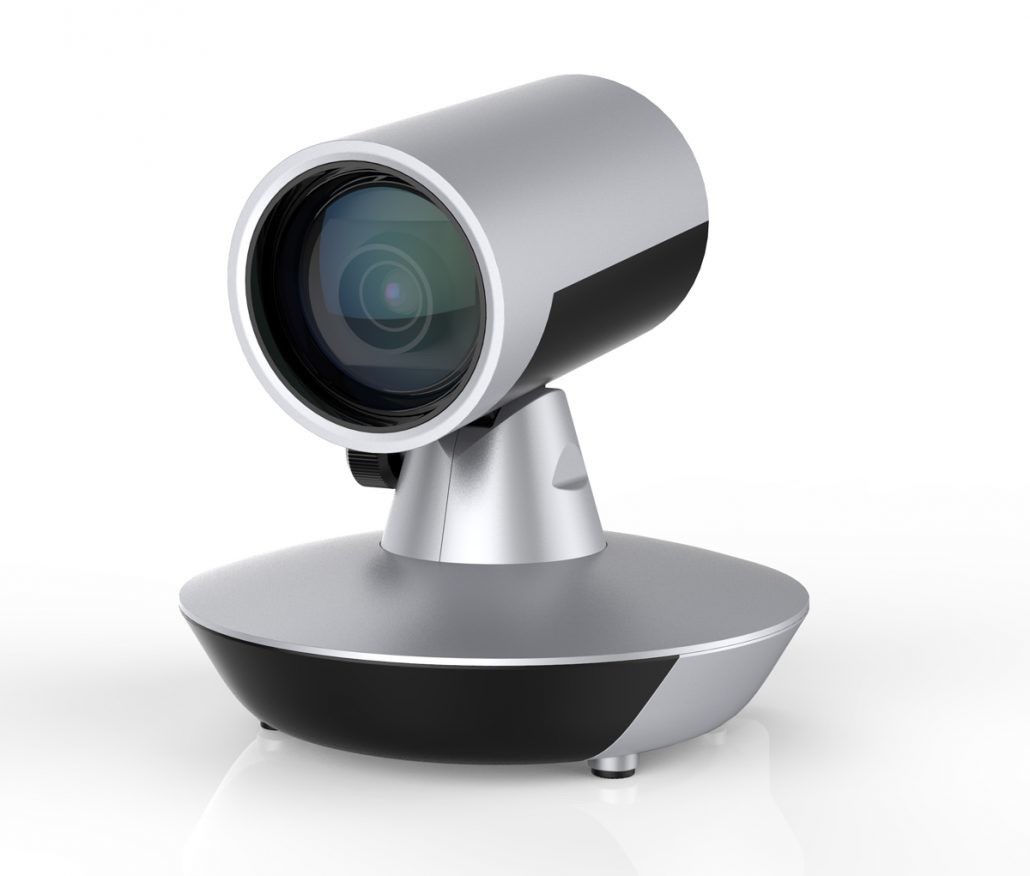

Hawkvine VC032 HD Integrated Zoom Camera best web camera for video conferencing 10X Digital Zoom.
VC032 KEY FEATURES
1.Super High-definition Image
VC032 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
2.Multiple optical zoom lens:5X,10X,12X,20Xmultiple optical zoom lens for your choice; the biggest undistorted FOV is 7°.
3.Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
4.Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
5.Multi-Format Video Outputs
Multiple interfaces include: 3G-SDI and LAN.The 3G-SDI is available for 100m transmission at 1080p60 format.
6.Multiple Video Compression
Support H.264/H.264+ video compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channels 1920x1080p with 30fps compression.
7.Support POE power supply function.
8.Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode, easy to link streaming media server (Wowza,FMS)
Support Multiple Control Protocol.
Support VISCA,PELCO-D,PELCO-P protocols which can also be automatically recognized.Support Visca protocol control through IP port.
9.Wide Application
Tele-education, Lecture Capture, Webcasting,Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.
Model | VC032-5X | VC032-10X | VC032-12X | VC032-20X | |
Camera,Len Parameter | |||||
Sensor | 1/2.8 inch high quality HD CMOS sensor | ||||
Effective Pixels | 16: 9, 2.07 megapixel | ||||
Video Format | 1080P60/30/25/59.94/29.97 ; 1080I60/50/59.94;720P60/30/25/59.94/29.97; | ||||
Optical Zoom | f=3.1~15.5mm | f=4.7~47mm | f=3.9~46.8mm | f=5.5~110mm | |
View Angle | 20°(tele)–83.7°(wide) | 6.43°(tele)–60.9°(wide) | 6.3°(tele)–72.5°(wide) | 3.3°(tele)–54.7°(wide)) | |
AV | F1.8 – F2.8 | F1.6 – F3.0 | F1.8 – F2.4 | F1.6 – F3.5 | |
Digital Zoom | 10X | ||||
Minimum Illumination | 0.5Lux(F1.8, AGC ON) | ||||
DNR | 2D & 3D DNR | ||||
White Balance | Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K | ||||
Focus | Auto/Manual/A key focus | ||||
Aperture/Electronic Shutter | Auto/Manual | ||||
BLC | ON/OFF | ||||
WDR | OFF/ Dynamic level adjustment | ||||
Video Adjustment | Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve | ||||
SNR | >55dB |
Input/Output Interface | |||
Video Interfaces | SDI Model:SDI,LAN,RS232,RS485,A-IN | ||
Video Output Interfaces | SDI,LAN | ||
Image Stream | Double stream output | ||
Video Compression Format | H.265,H.264 | ||
Audio Input Interface | A-IN:Double track 3.5mm linear input | ||
Audio Compression Format | AAC,MP3,G.711A | ||
Audio Output Interfaces | LAN | ||
Control Interface | RS232,RS485; | ||
Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400 | ||
Network Interface | 100M IP port(10/100BASE-TX;Support POE) | ||
Network Protocol | RTSP,RTMP,ONVIF,GB/T28181;Network VISCA Control Protoc; Support remote upgrade, reboot and reset. | ||
Power Interface | 5.0 Card line socket(DC12V) | ||
Power Adapter | Input: AC110V-AC220V Output: DC12V/1A | ||
Input voltage | DC12V±10% | ||
Input current | 400mA (Maximum) | ||
Power Consumption | 4.8W (Maximum) | ||
Other Parameter | |||
Pitch Rotation Range | ±25°Manual adjustment | ||
Storage Temperature | -10℃~+60℃ | ||
Storage Humidity | 20%~95% | ||
Working Temperature | -10℃~+50℃ | ||
Working Humidity | 20%~80% | ||
Dimension | 154.5mmX154.5mmX149.3mm | ||
Weight (around) | |||
Using environment | Indoor | ||
Accessory | |||
Random Accessory | 12V/1A power supply, Manual, Warranty card | ||
Optional Accessories | Mounting bracket |
