Product Description

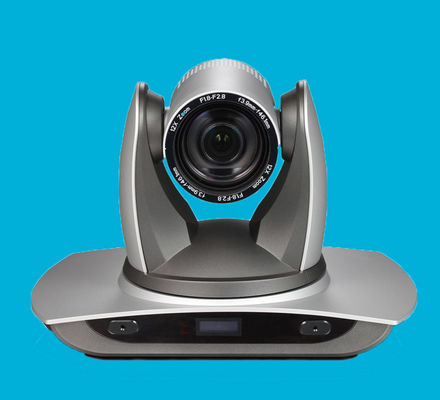

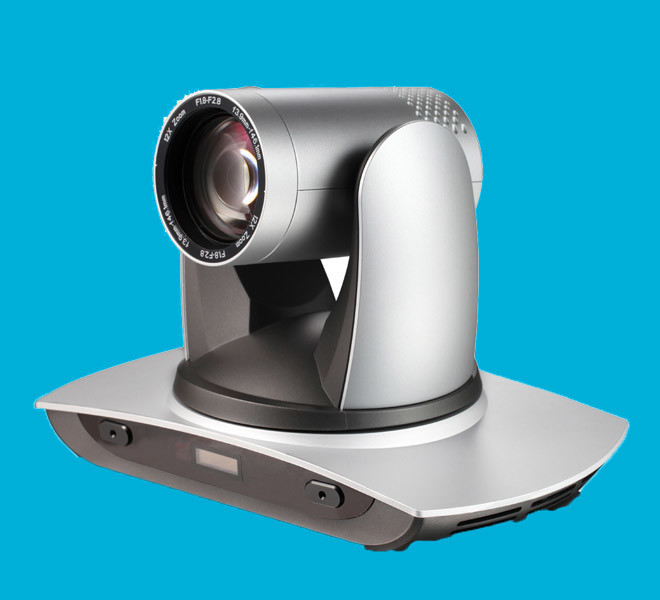

Hawkvine VC025 Best Conference Room Web Camera USB2.0 10X Digital Zoom Android Systerm.
VC025 KEY FEATURES:
Integrated platform design: support audio input and output; support 1x HDMI input, 1x HDMI output; with LAN interface; with 2x USB2.0 interface; with Bluetooth and 5GWiFi interface.Camera and endpoint platform successfully integrated together.
Compact design: VC025 adopts integrated compact design, built-in camera and multiple interfaces. With mall size, rich interface and easy connection advantage, VC025 is easy to install and maintain.
Open hardware platform and SDK: VC036 fully supports the secondary development by users to achieve custom needs.
Unmatched platform compatibility: Support users to customize developments such as H.323 / SIP protocol stack, and achieve good interoperability with mainstream standard endpoint and MCUs in the industry ; to facilitate customers expansion and upgrading.
Wireless WiFi: Support standard wireless protocols ; support simple and efficient equipment deployment.
Built-in audio: Built-in high-sensitivity pickup to contribute to high-quality voice two-way intercom; voice echo cancellation; noise suppression and automatic gain control function are matched to ensure high-fidelity voice and low latency;
Bluetooth interface: Built-in Bluetooth module,which could be paired with an external Bluetooth interface to achieve Bluetooth data transmission.
Local storage: Support SD card storage; U disk storage; storage space is up to 32G.
Superb high-definition image: The camera employs 1/2.8 inch, 2.07 million pixels high quality CMOS sensors with resolutions of up to 1920×1080 and frame rate up to 60 fps.
Wide angle zoom lens without distortion: The camera has the option of 12X optical zoom lenses. 12X zoom lens offers 72.5 ° wide view angle without distortion.
Leading auto focus technology: The leading auto focus algorithm provides fast, accurate and stable auto-focusing.
Low noise and high SNR: Low noise CMOS sensors ensures high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
Multiple video compression: Supports H.265/H.264 video compression.
Low-power sleep function: Supports low power sleep/wake up with consumption in sleep mode.
Quiet and quick pan/tilt mechanism: By adopting a step driving motor mechanism, the camera works extremely quietly and moves very smoothly.
Input/Output Interface | |
Hawkvine No. | VC025 |
LAN | 1000ML LAN Port(10/100BASE-TX) |
WIFI | Support 802.11b/g/a protocol |
HDMI Input/output | 1 x HDMI Input,1 x HDMI output, HDMI 1.4 |
USB | 2 x USB2.0 output. Support Outsourcing Video and Storage Device. |
Audio Input/output | 3.5mm linear output, Mini XLR Input. |
Built-in Mic | Built-in high sensitive digital Pickup. |
Bluetooth | Bluetooth 4.1 |
IR Control | Camera Control, Meeting control by IR Controller |
Power | HEC3800, DC12V |
LED Display | Display necessary information like system status in the front panel. |
SD CARD | Local Recording, up to 32G. |
Android Platform Parameters | |
CPU | Quad core ARM Cortex A7,Main frequency 1.5GHz |
3D GPU | OpenGL ES 2.0/1.1/1.0 OpenVG 1.1,EGL |
Memory | DDR3/3L interface;capacity 2GB;Dram 32bit;Maximum frequency is up to 800MHz/DDR1600 |
EMMC | Support SLC/MLC device; Support 8bit data width;Capacity 8GB |
Video coding and decoding | H.265 Main Profile@L5.0 High-tie H.264 BP/MP/HP@ level 5.0; Support 4 ways HD streaming decoding simultaneously. |
Audio coding and decoding | MPEG L1/L2;DRA decoding; AAC-LC;HE AAC V1/V2 decoding;APE/FLAC/Ogg/AMR-NB/WB decoding;G.711(u/a) audio decoding;downmix process,resample,high dynamic volume control ;Support High Quality Kara OK function,Support echo cancellation and G.711(u/a) /AMR-NB/AMR-WB /AAC-LC audio coding; |
Camera Parameter | |
Sensor | 1/2.8Inch High Quality HD CMOS Sensor |
Effective Pixels | 2.07MP, 16:9 |
Video Format | 720P60/50/30/25 /59.94/29.97 |
Video Compression | H.265,H.264 |
Optical Zoom | 12X optical Zoom, f=3.9~46.8mm |
View Angle | 6.3°(Narrow Angle)~ 72.5°(Wide Angle) |
Aperture | F1.8~F2.4 |
Minimum Illumination | 0.5Lux(F1.8, AGC ON) |
Digital ZOOM | X10 |
Digital ZOOM | 2D﹠3D |
White Balance | Auto/Manual/OnePush/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
Focus/Aperture/ Shutter | Auto/Manual/One Push |
BLC | On/Off |
WDR | OFF/ Dynamic level adjustment |
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
SNR | >55dB |
Control Protocol | VISCA, UVC |
Pan Tilt Parameter | ||
Pan Rotation | ‐170°~+170° | |
Tilt Rotation | -30°~+30° | |
Pan control speed | 0.1 ~180°/s | |
Tilt control speed | 0.1~80°/s | |
Presets Number | 255 points(10points by Controller) | |
Preset Speed | Pan: 180°/s, Tilt: 80°/s | |
Others | ||
Power Adapter | AC110V‐AC220V to DC12V/2A | |
Power supply | DC12V±10% | |
Currency | 1A(Max) | |
Power | 12W(Max) | |
Storage Temperature | -10℃~+60℃ | |
Storage Humidity | 20%~95% | |
Working Temperature | -10℃~+50℃ | |
Working Humidity | 20%~80% | |
Dimension(WXHXD) | 253mmX168mmX144mm | |
Weight(Appx.) | 1.55kg | |
Application Environment | Indoor | |
Network Maintenance | Remote Upgrade, Remote Reboot, Remote Reset |
