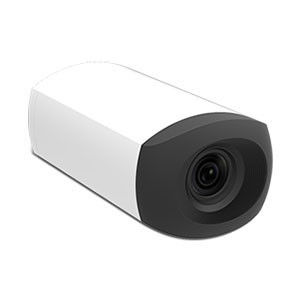

Hawkvine HV-VC038 IP SDI Integrated Video Conference Camera output 1080p images simultaneously
Hawkvine HV-VC038 IP SDI Integrated Video Conference Camera output 1080p images simultaneously
Contact Now

Hawkvine HV-VC038 IP SDI Integrated Video Conference Camera output 1080p images simultaneously

Minimum Order Quantity : 10PCS Price : 100-10000
Packaging Details : Carton Packing Delivery Time : 15days
Payment Terms : L/C, T/T Supply Ability : 1000 Per month
Place of Origin: CHINA Brand Name: HAWKVINE
Certification: TS16949 Model Number: HV-VC038

Detail Information
Optical Zoom: 3x,5x Video Compression: H.264
Net Weight: 0.42KG Dimension: 149mm X 76mm X 58mm

Product Description

Hawkvine HV-VC038 IP SDI Integrated Video Conference Camera output 1080p images simultaneously.



HV-VC038 Features:

1/3″ CMOS, 2.14MP;
Up to 5x optical zoom;
Support various control modes, including network, remote
control, RS232& RS485 control, and local button control;
Support SDI and RJ45 output interface, can output 1080p images simultaneously;
Support H.264 video compression, support up to 1080p30, and with low network latency;
Support 2 audio inputs, with AAC audio compression;
Compatible with HTTP, RTSP, RTMP, ONVIF protocols.

Hawkvine No. HV-VC038A HV-VC038B
Camera
Image Sensor 1/3″ CMOS, 2.14MP
Focal 2.8mm – 14mm 7mm – 22mm
Effective Pixel 1920 x 1080
Optical Zoom 5X 3X
Field of View 98° – 40° 33° – 15°
Focus Auto / Manual
Min. Illumination 0.5Lux
White Balance Auto
Exposure Auto
Control Buttons 5
Video Output 1080P30 / 1080P25 / 720P60 / 720P50
Network
Max. Image Size 1920 x 1080@30fps
Video Compression H.264
Audio Compression AAC
Protocol HTHTTP / RTSP / RTMP / ONVIF
Simultaneous Users Up to 10 users
Dual Stream Support
Ethernet Interface 100M(RJ45)
Interface
Video Interface 3G-SDI
Audio Interface 3.5mm Audio Interface( 2 Line in / 1 line out)
Comm. Interface RS-232,RS-485
General
Control Protocol VISCA
Power DC 9V~12V
Power Consumption <5W
Working Temp -40°C~+60°C
Dimension 149mm x 76mm x 58mm
Weight 0.42KG
Body Colour White



Hawkvine HV-VC038 IP SDI Integrated Video Conference Camera output 1080p images simultaneously 0
