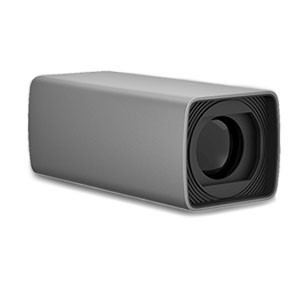

Hawkvine HV-VC037 IP SDI Integrated Video Conference Camera 20x Optical Zoom H.265, H.264
Hawkvine HV-VC037 IP SDI Integrated Video Conference Camera 20x Optical Zoom H.265, H.264
Contact Now

Hawkvine HV-VC037 IP SDI Integrated Video Conference Camera 20x Optical Zoom H.265, H.264

Minimum Order Quantity : 10PCS Price : 100-10000
Packaging Details : Carton Packing Delivery Time : 15days
Payment Terms : L/C, T/T Supply Ability : 1000 Per month
Place of Origin: CHINA Brand Name: HAWKVINE
Certification: TS16949 Model Number: HV-VC037

Detail Information
Optical Zoom: 20x Video Compression: H.265, H.264
Net Weight: 0.83KG Dimension: 170mm X 80mm X 70mm

Product Description



Hawkvine HV-VC037 IP SDI Integrated Video Conference Camera 20x Optical Zoom H.265, H.264.



HV-VC037 Features:

H.265 video compression, dual stream;
2.14MP, 1/2.8″ CMOS;
Support various HD video formats;
Has 3G-SDI output interface;
20x optical zoom, 12x digital zoom;
With OSD menu;
With RS485 & RS232 control interfaces;


Has image flip function.

Hawkvine No. HV-VC037
Tracking Camera
Image Sensor 1/2.8″ Exmor CMOS, 2.14MP
HD Signal Format 1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25
Focal f=4.7 – 94.0mm
Iris F=1.6 – F3.5
Optical Zoom 20X
Digital Zoom 12X
Min. Illumination 0.5Lux(Color), 0.1Lux(B/W)
WDR Yes
Field of View 59.5° – 2.9°
Focus Auto, Manual, One Push
Shutter Speed 1/1 ~ 1/10.000s
AGC Auto/Manual
White Balance Auto, Indoor, Outdoor, One Push, Manual, Auto Track
AE Control Auto, Manual, Shutter Priority, Iris Priority
BLC Yes
Noise Reduction 2D/3D
Preset Number 256
OSD Yes
Image Flip Yes
S/N Ratio ≥50dB
Network
Max. Image Size 1920 × 1080, @60fps
Video Compression H.265, H.264
Audio Compression AAC
Protocol HTTP, RTP, TCP, UDP, ONVIF, RTSP, RTMP
Simultaneous Users Up to 10 users
Dual Stream Support
Interface
Ethernet RJ45 connector, 100M
Video Output 3G-SDI
Control Interface RS485, RS232
General
Control Protocol VISCA, PELCO-D, PELCO-P
Address 1~7(VISCA), 0~255(PELCO-D / PELCO-P)
Power DC12V
Power Consumption <15W
Working Temp 0°C ~ +40°C
Storage Temp -20°C ~ +60°C
Dimension 170mm x 80mm x 70mm
Weight 0.83KG
Body Colour Grey



Hawkvine HV-VC037 IP SDI Integrated Video Conference Camera 20x Optical Zoom H.265, H.264 0
