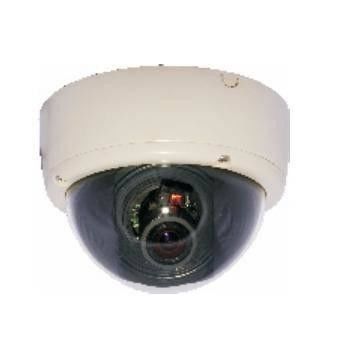

600TVL Star Light CCD Fixed Plastic Dome Camera
600TVL Star Light CCD Fixed Plastic Dome Camera
Contact Now

600TVL Star Light CCD Fixed Plastic Dome Camera

Delivery Time : 7~10days
Place of Origin: China Model Number: MF-5111

Detail Information
Style: Dome Camera Sensor: CCD
Type: Video Camera Special Features: Indoor
Technology: Star Light Category: CCTV Products
Price Condition: EXW Shenzhen

Product Description


Feature:
600TVL Hi-Resolution Color
Fully Function English/Chinese Language OSD Menu,
256 Area Independent Mathematical Exposure(Hardware operation),
256 Area Independent Mathematical Auto White Balance(Hardware operation),
Super Backlight compensation,
Star Light Low Lux IR-Cute Module Output,
Digital Dynamic Noise Reduction,
High Performance 14bit DSP,
Privacy Mask,
Motion Detection,

Model Star Light 5111 NTSC Star Light 5111 PAL
Image Pick-up Device 1/3" SONY Super HAD CCD
Picture Elements 811(H) x 508(V) 795(H) x 596(V)
Effective Picture Elements 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2:1 Interlaced
Synchronizing System Internal / Line Lock Selectable
Horizontal Frequency 15.734kHz 15.625kHz
Vertical Frequency 59.94Hz 50.00Hz
Resolution 600 TV Line Horizontally(Color) / 650TV Line Horizontally(B/W)
Video Output 1.0Vp-p/75Ω Video 0.714Vp-p Sync 0.286Vp-p
S/N Ratio More than 54db (AGC OFF)
Min. Illumination 0.1 Lux at F1.2(Color)
 0.001 Lux at F1.2(B/W)
Iris Mode DC IRIS(Shutter 1/50~1/120,000 Adjustable) / ELC Selectable
ELC 1/60~1/60,000s 1/50~1/60,000s
AGC ON/OFF Selectable
GAMMA 0. 3 / 0.45(CRT) / 0.6(LCD) / 0.75
White Balance ATW / AWD / MANUAL Selectable
Back-Light Compensation OFF / LOW / MID / HIGH Selectable
Motion Detector ON / OFF Selectable (Area:4)
Privacy ON/OFF Selectable (Area:4)
Day and Night Mode AUTO / DAY / NIGHT / EXT / BLACK Level Selectable
Mirror H-Mirror / OFF Selectable
Communication
Control Manner Built-in Chinese, English OSD Menu
Lens f=3.7~12mm DC Driver Auto Iris Lens
Power Supply DC 12V ±10%
Power Consumption 2.2W(DC)
Dimension Φ141 x 105(H)mm (Plastic Dome)
Operation Temperature 50℃ ~ -10℃
Storage Temperature 60℃ ~ -40℃
Operation Humidity 20% ~ 90% RH
Weighr Approx. 460g


Color reproduction(True color),
No color rolling,
No delay image,
No ghost shadow at night vision,
Application:
City surveillance
Airport
Casino
Petrol station
Hospital
Logistics
Mine
