Product Description

VC880 is a new video conference room terminal product launched by Yilian, which will bring you extraordinary conference experience. The product has a built-in powerful MCU, which can support high-definition video conference of up to 24 parties; With the unique multi camera solution of Yilian, only standard network cables and PoE switches are needed to connect up to 9 cameras and other accessories. Expensive other equipment is omitted, and multi-directional and multi perspective meetings are readily available. VC880 has rich audio and video physical interfaces, supports third-party cameras or video matrices, and is equipped with professional RCA audio input and output interfaces, which are integrated with the mixer and desktop gooseneck microphone system. The split design is adopted to meet the needs of the large venue deployed in the control room. Three wires are integrated to greatly reduce the difficulty and cost of wiring. Interactive cooperation is supported, which can bring a better remote communication experience in the video conference room.

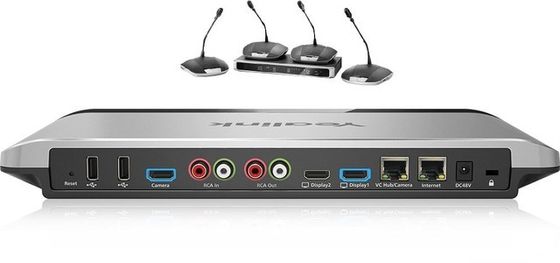

Split design, meeting the requirements of video conference room integration

The VC880 adopts a split design with the multi camera scheme of Yilian. One VC880 can connect up to 9 VCC22 cameras. In the scene where the control room is separated from the video conference room, the control room and the venue can be connected with only standard Category 5 network cables, solving the deployment problem of difficult threading, greatly reducing the deployment difficulty and the conference room transformation cost. Only PoE switches and standard network cables are needed to complete the connection of multiple cameras and other accessories, eliminating the need for complex video matrices and switching wires, saving a lot of time and money for installation. Support RCA audio input and output and third-party camera access, making the venue deployment more simple and efficient.

Support third-party camera or video matrix

The VC880 has a dedicated HDMI interface, which supports the input of third-party cameras or video matrices. The input camera images can be spliced with the VCC22 images, and the layout can be switched. It is compatible with the Yilian multi camera scheme. Equipped with professional RCA audio input and output interface, integrated with the mixer and desktop gooseneck microphone system.

Up to 24 channels of MCU are supported to build a video conference room that can meet the requirements of multi-point meetings

VC880 can support up to 24 channels of MCU, and can be divided into two high-definition group meetings (virtual video conference room);

Support voice stimulation and screen rotation, the system automatically jumps over the layout and identifies speakers, making communication more intuitive.

Stronger network adaptability, adapting to enterprise cross public network applications

The latest anti packet loss technology of Yilian is adopted, which can resist up to 30% of video packet loss without screen loss; It can resist up to 80% of audio packet loss. In complex network environment, voice can still be clear and coherent.

Open connectivity and deep integration with mainstream cloud platforms

It is deeply integrated with Yilian video conference server and Yilian cloud video messaging, and can create an instant conference or join an appointment video conference room with one click; Support the equipment management platform of Yilian to achieve rapid deployment; Support H 323/SIP dual protocol; It supports RS-232/HTTPAPI and VISCA/PELCO PTZ control protocols, and is compatible with mainstream central control and video tracking systems.

VC full HD PTZ camera

If you are looking for an excellent pan/tilt/zoom (PTZ) video conference camera for a medium-sized conference room, Yelink VCC20 is the ideal choice. 2.18 megapixel high-definition CMOS sensor and 12x optical zoom provide power for VCC20 high-definition PTZ, providing up to 1080p@30 High definition image of fps. The Yelink VCC20 camera is the best solution for smaller environments. It is so detailed and realistic that you feel like you are in a meeting room with others.

characteristic

• Elegant and fashionable design

• Full HD 1080p30 video transmission

• Clear, clear and natural colors come from precisely tuned optics

• Pan/Tilt/Zoom

• Advanced white balance control and autofocus

• Excellent low light processing

Specifications

• Camera type: 1/2.8 "HD CMOS

• Maximum resolution: 1920 × one thousand and eighty

• Video output pixels: 1080/301080/25720p/30720p/25

• Maximum FPS: 30 fps

• Lens focus: F=3.92mm to 47.32mm

• Lens aperture (F ＃): F/1.84 〜 F/2.81

• Zoom: 12x optics

• Horizontal field of view: 70.0 °

• Vertical field of view: 48 °

• Minimum illumination: 0.5 lux (daytime), 0.1 lux (nighttime)

• Signal to noise ratio (SNR):>55dB

• Focus: Auto/Manual

• Exposure: automatic/manual

• White balance (WB): ATW/automatic/manual

• Translation range: ± 100 °

• Tilt range: ± 30 °

• Shutter speed: 1/30~1/10000 seconds

• Video system compatibility: Yealink VC120/VC400

• Room size: Medium

• Size (W * H * D): 235mm * 172 mm * 169 mm

• Operating humidity: 20% - 85%

• Operating temperature: 0 ° C~40 °
