asterisk gsm gateway terminal,GOIP16, 16 ports 64 sim gsm gateway

Minimum Order Quantity : 10 units Price : USD 300-1000 per unit
Packaging Details : 30*15*5CM Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 5000 per month
Place of Origin: China Brand Name: Biocare or OEM
Certification: CE FCC Model Number: GOIP8

Detail Information

GSM Port: 4-8 Protocol: SIP 2.0
IMEI Changeable: Supported Quad-Band GSM Network: 850/900/1800/1900MHz
Software Supported: VOS IMS Call Terminal Application: Ip Pbx, Wireless Call Terminal, Call Center
SMS Sending: Supported

Product Description

asterisk gsm gateway terminal,GOIP16, 16 ports 64 sim gsm gateway 0asterisk gsm gateway terminal,GOIP16, 16 ports 64 sim gsm gateway 1asterisk gsm gateway terminal,GOIP16, 16 ports 64 sim gsm gateway 2

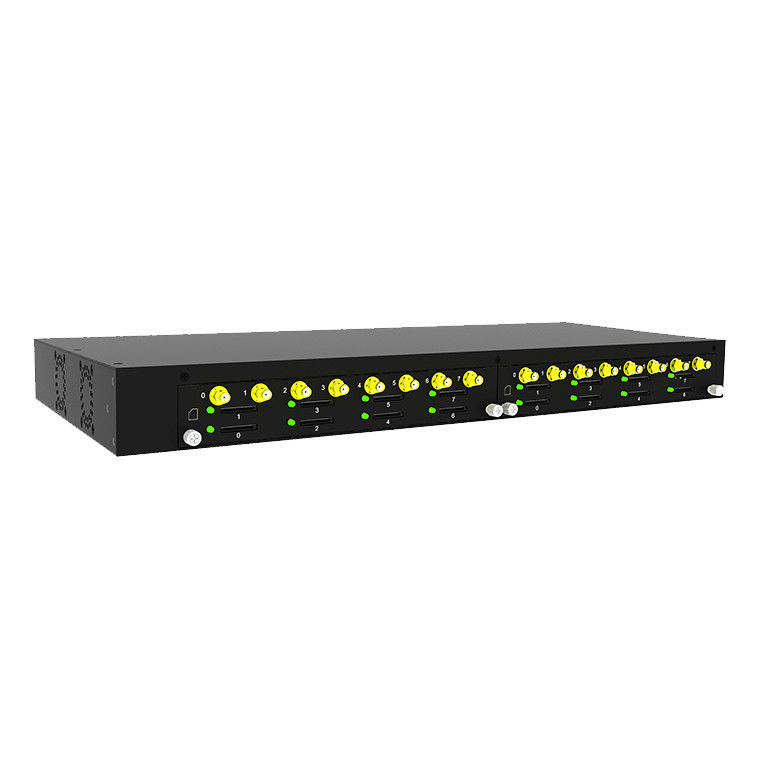

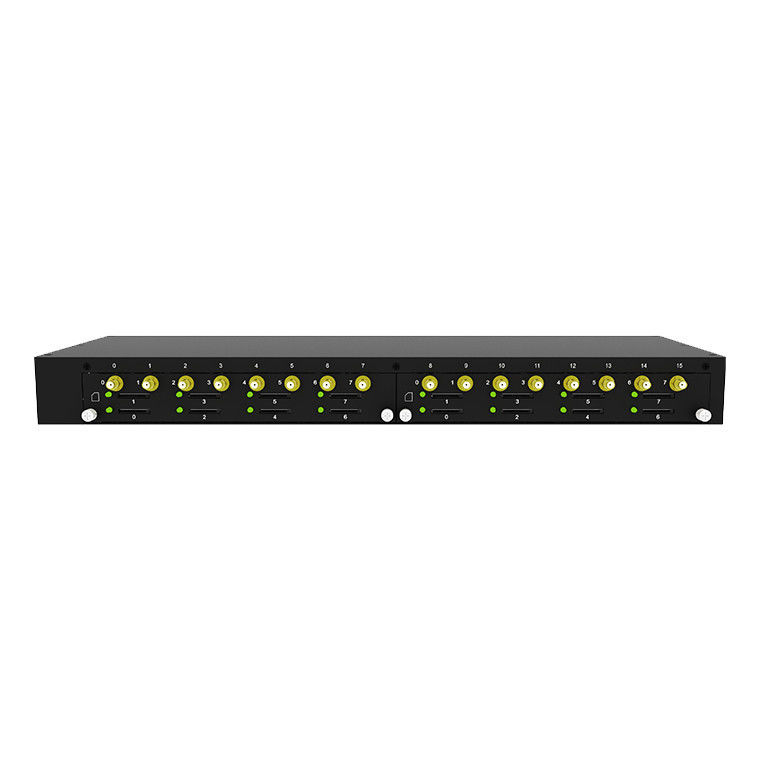

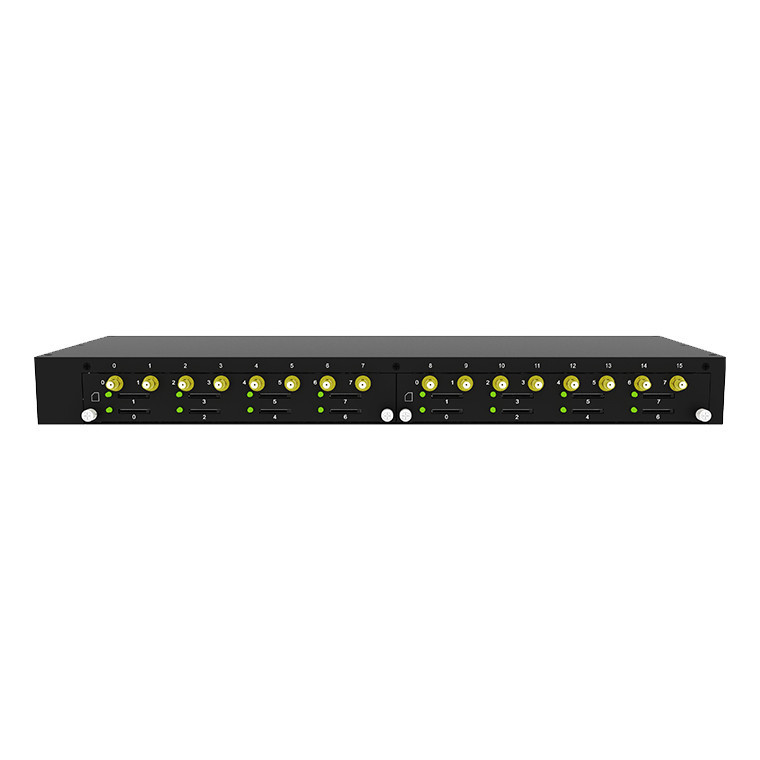

16 ports GSM voip gateway with 64 sim card



Key features:
Support 8 / 16 channels with 8-64 sim cards
Support 850/900/1800/1900MHz quad-band GSM network
Support BTS and carrier change and locked
Support IMEI and PIN modify
SMS receiving/batch sending, AT command compatible
Support USSD balance enquiry
Automatically lock/switch SIM card according to its balance, balance alarm


Introduction:

The GSM VoIP gateway is a wireless Phone Gateway that support 8/16 channels CDMA interface with 8-64 sim card. GSM Gateway is a new product that connect the GSM and the VOIP seamlessly. To GSM Gateway what is installed on the Mobile SIM Card, you can register the GSM telephone on the VOIP Softswitch.SIP and H.323 agreement are built in the GSM Gateway and configured flexible.
Caller ID can be seen by using SIP. Flexible routing can meet the need of all kinds of call forwarding; even more special is that GSM GATEWAY support multi-device group, it can be easily combined into arbitrary number of channels of Large Gateway Group.


Basic features:
Support SIP registration and peer-to-peer
Support Hotline, Phone book, Speed dial, Dial Plan
Update firmware by local or internet
Field proven compatible with Asterisk-based softswitches
Single-channel debug for manual calling, directly AT command
LCR automatically route calls
Centralized network management
Caller ID detection and generation
Master and slave SIP server
VLan and QoS support
SIM card hot plug
Calling Statistics
Support customized IVR

Mobile Features:
SMS Send, Receive and Forward(GSM/SIP/HTTP)
SMS Inbox
AT Command
USSD
SMS Format: PDU/TXT
PIN Code Management
GSM Polarity Reversal
Carrier Selection
Caller ID Hidden(need SIM Card support)


Specifications



Model

Goip16-64 16 channels with 64 sim cards

Network

GSM


Frequency

850/900/1800/1900MHz

Call Control Protocols

SIP

Voice Codecs

G.729A, G.723.1, G.711 a/ulaw

Network Protocols

IPv4, TCP, UDP, PPPoE, DHCP, DNS, NAT, Telnet, HTTP, FTP, TFTP

Configuration and
Maintenance

Web-based GUI
Console, Telnet command line
Centralized network management

Firmware Update

Local file, FTP, TFTP and HTTP

Telephony Features

Hot-line call ,Dial plan, Speed dial, Phone book, CDR, LCR, White list

Telephony Signaling

DTMF tone dectection/generation
DTMF relay: in-band, RFC 2833 and SIP info
Call forward: unconditional, no answer and busy
N-way conferencing
Caller ID display/generation, Mobile Number Portability

Voice Quality

Echo cancellation
Silence suppression(voice activity detection, comfortable noise generation)
Adaptive jitter buffer

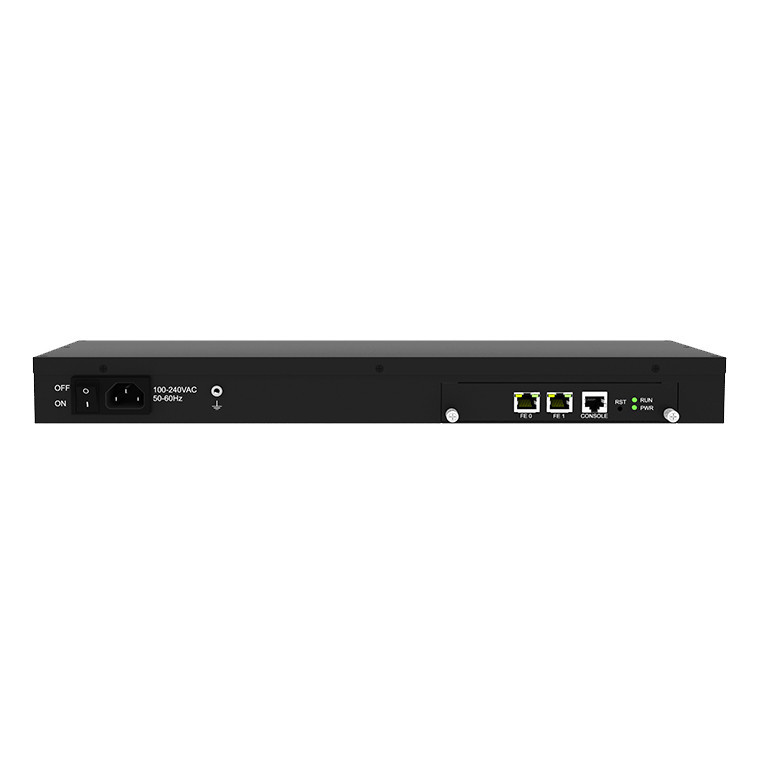

Number of Ports

1 WAN 10/100Base-T ethernet(RJ-45 connector)
1 LAN 10/100Base-T ethernet(RJ-45 connector)
1 console(RJ-11 connector)

LEDs

1 power and 8 groups of signal strength and running indicator

Power Supply

100-240VAC, 50 - 60 Hz

Dimensions

Rack mountable 1U chassis(compatible with 19" Rack)
Width: 482mm
Height: 44mm
Depth: 210mm

Weight

2.5kg

Operating Environment

·Operating temperature: 0 - 50ºC
·Operating humidity: 10 - 90%

Warranty

12 Months
